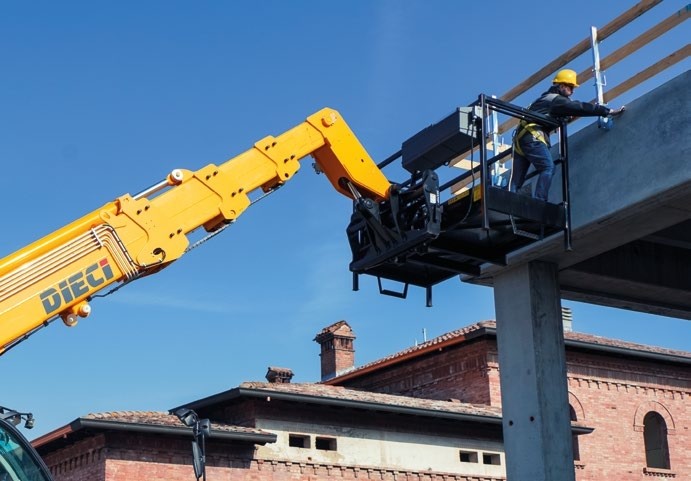

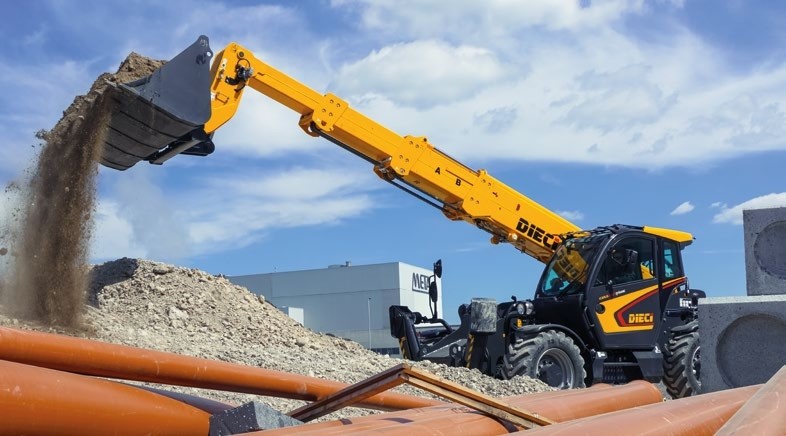

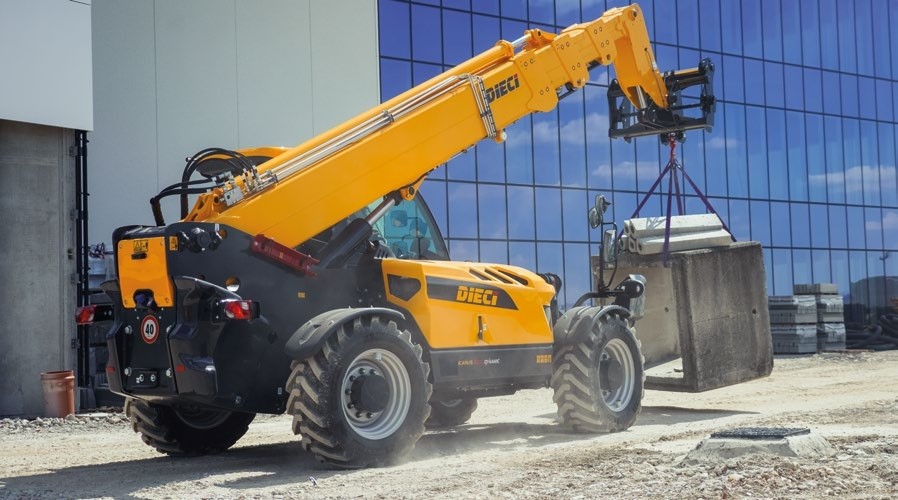

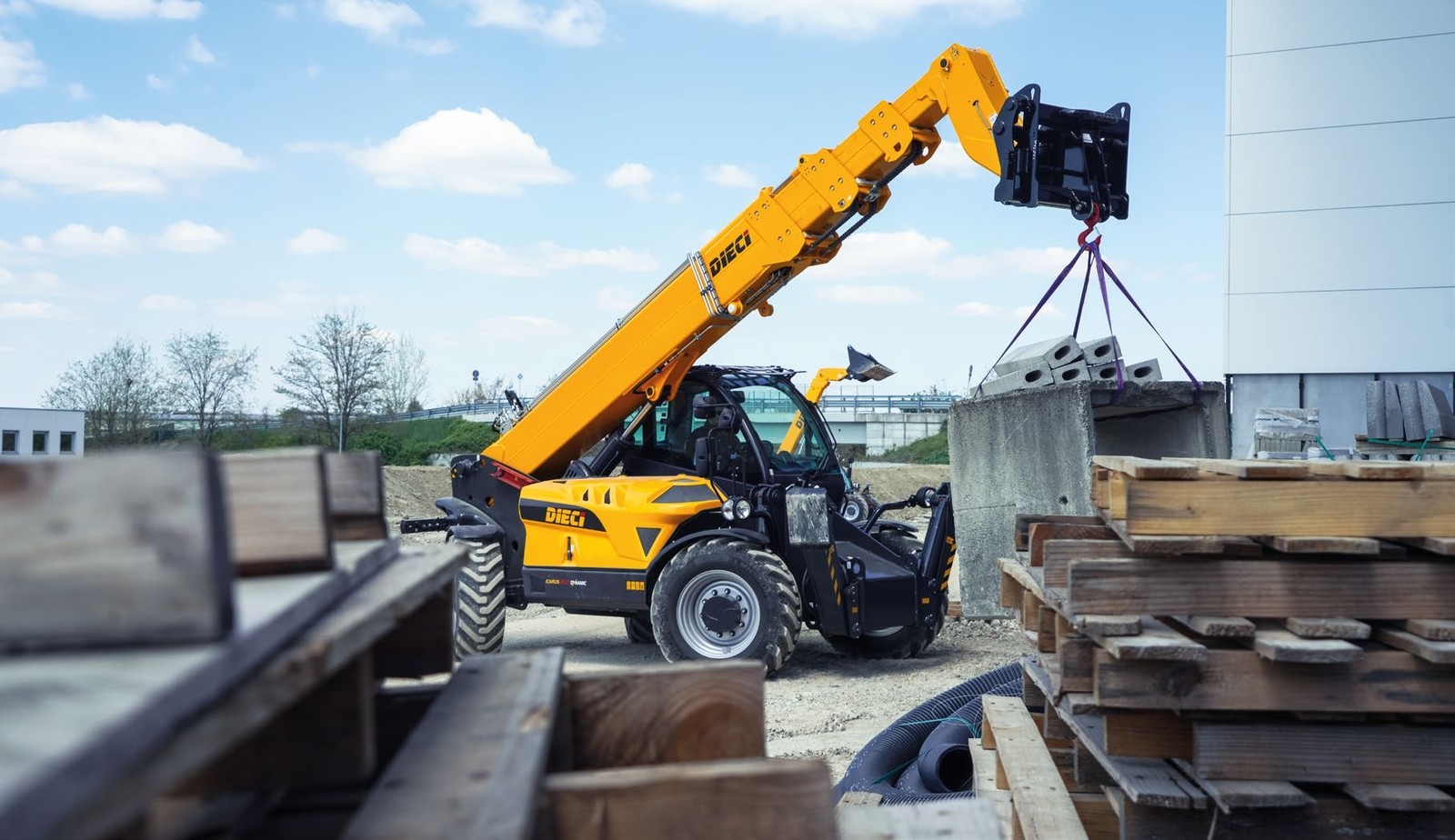

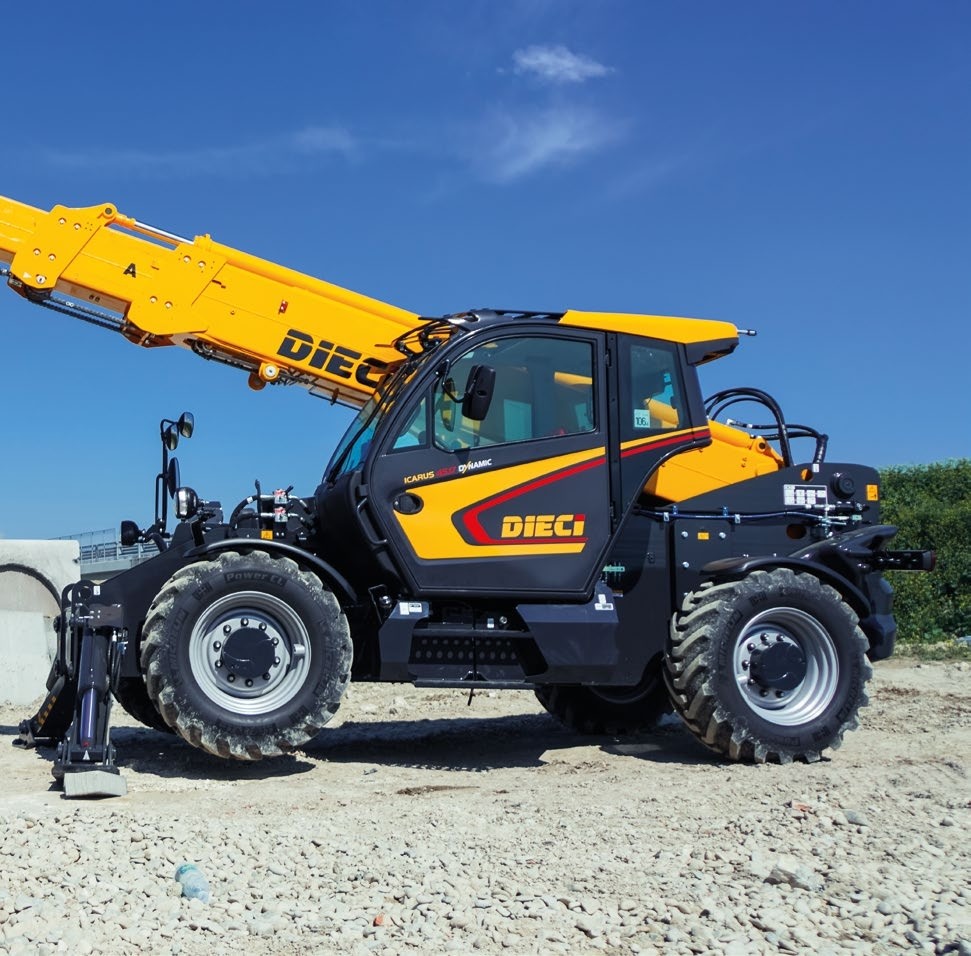

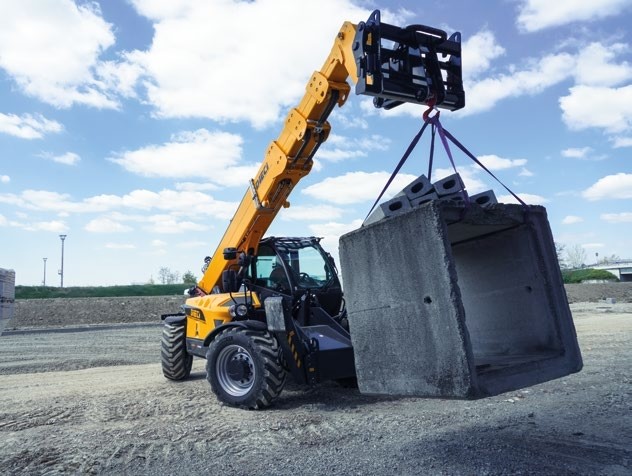

NEW DIECI ICARUS 45.17 – GD telescopic loader 4500 kg

Brand: DIECI
Model: ICARUS 45.17 – GD
Drive type: diesel
Fuel: diesel oil
Mast type: telescopic
Lifting height: 16,400 mm
Mast height when folded: 2,530 mm
Fork length: 1,200 mm
Load capacity: 4,500 kg

Engine:
– Brand: Kubota
– Nominal power: 55.4 kW (74 HP)
– RPM: 2600 rpm
– Capacity: 3331 cm³
– Four-stroke, 4 cylinders in-line
– Turbocharger with intercooler
– Electronic injection Common Rail
– Emission standard: Stage V/Tier 4f
– Exhaust gas cleaning: DOC+DPF
– Liquid cooling
– Air filter with preheating and dust separator

Transmission system:
– Hydrostatic with variable displacement pump
– Hydrostatic hydraulic motor with automatic continuously variable transmission CTV
– Direction change with electronic control
– Precision movement pedal (electronic)
– Gearbox: two-speed, servo-controlled

Hydraulic system:
– Gear pump for steering and movement assistance
– Capacity: 102 liters/min
– Maximum working pressure: 27 MPa (3916 psi)
– Hydraulic oil: DIECI Hydro Telehandler Fluid ISO46
– Hydraulic sockets: Flat Face quick couplers with continuous oil flow function
– Distributor: 4in1 full electric
– Control: 4in1 proportional electric joystick with FNR

Axles and steering:
– 2 steering axles with 4 planetary reduction gears
– Steering modes: 4 wheels / both axles turn in the same direction / 2 wheels
– Front axle with transverse leveling controlled from the cabin
– Rear oscillating axle
– Automatic differential lock 45% on the second axle

Cabin:
– Homologation: ROPS – FOPS
– Silentblock suspension with soundproofing
– Front and rear wipers with washers
– Roof and rear window opening
– Internal rearview mirror
– Doors with electrically operated window
– Adjustable seat
– Adjustable steering wheel
– Joystick with integrated FNR
– 7″ TFT color display with diagnostic and load functions
– RPM indicator, water thermometer, fuel gauge, tachometer, hour counter, clock
– Particulate filter clogging level indicator
– Hydraulic and engine oil temperature

Telescopic boom:
– 3 extendable segments
– Boom speed addition
– LED spotlight on the head
– Additional solenoid valve on the head
– Double Overcenter lock valve on suspension

Safety devices:
– Movement lock in case of overload
– Driving only with driver on board
– Automatic parking brake when engine off
– Fork lock
– Seat belts
– Emergency stop button
– Side and rearview mirrors
– “Arm too high” function
– Joystick with capacitive vigilance sensor

Stabilization and support:
– 2 independent stabilizing supports with proportional control
– Transverse leveling
– Leveling block
– Stabilizing supports with raised boom

Machine characteristics:
– Maximum speed: 25 km/h
– Engine compartment soundproofing
– Under-engine and undercarriage protection
– Lever hydraulic distributor with proportional and simultaneous control elements (Flow sharing)
– Open auxiliary installations (type “open center”)
– Fixed Dieci equipment carrier plate
– Quick coupler for Dieci accessories with hydraulic control from the cabin
– No AdBlue – simplified maintenance
– Purpose: construction, rental

We provide warranty and post-warranty service for the offered devices.
Financing options: loan/leasing.
We offer new and used forklifts, ready for rent and purchase.

Net price: 439,900 PLN
