New DIECI AGRI PIVOT T60 Telescopic Loader
81,244.44€ net

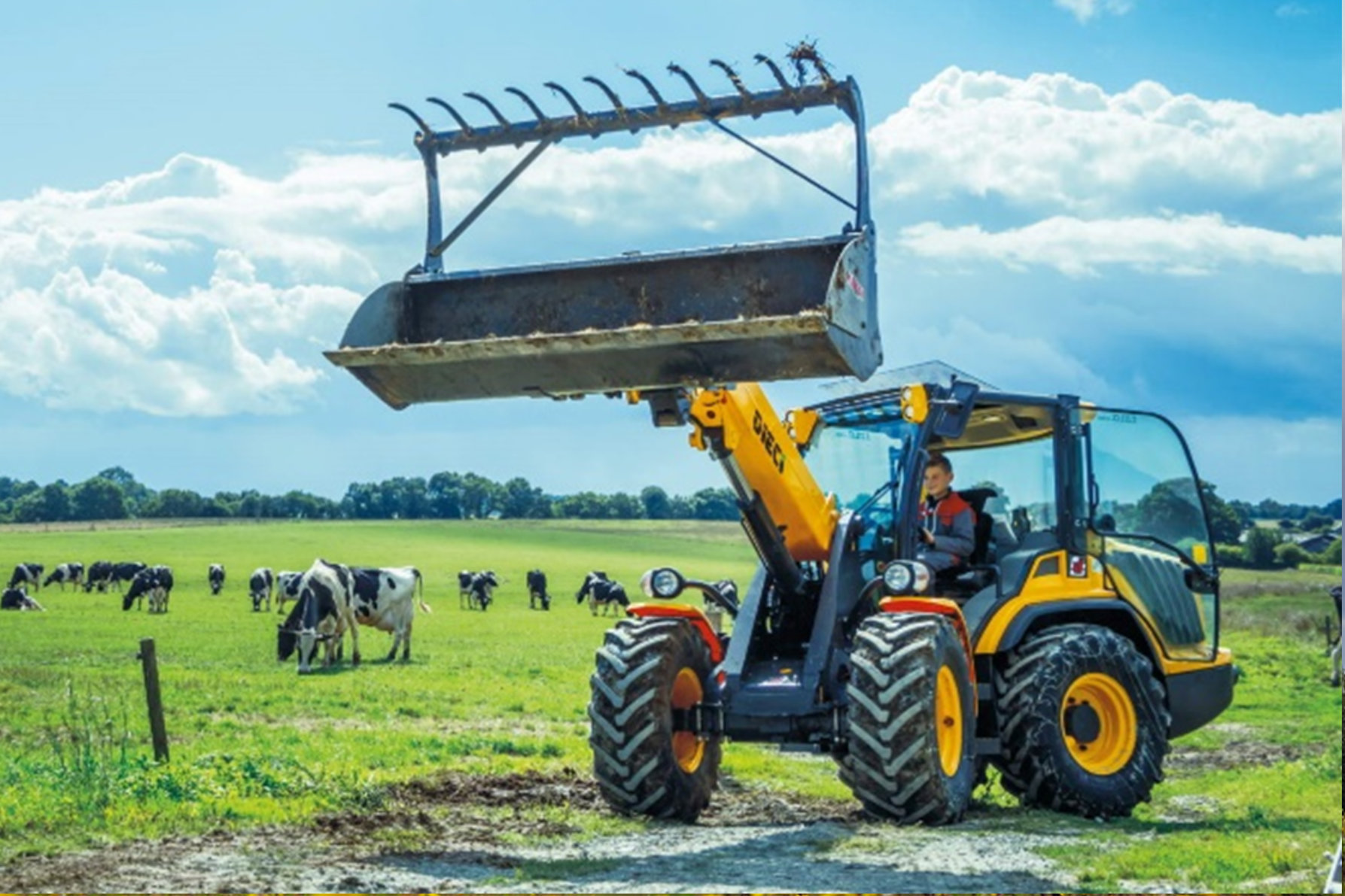

Agri Pivot T60 – agile 2.25 t telehandler for work in the tightest spaces
The T60 model combines the precision of a wheel loader with the reach of a telescopic handler: it reaches 4.7 m and lifts up to 2250 kg, while remaining exceptionally compact (1.88 m width). The articulated chassis with 80° steering angle guarantees excellent maneuverability, and the centrally positioned boom and longitudinal mounting of the Kubota Stage V engine (73 HP) ensure excellent visibility and quick service access. Hydrostatic drive with CTV transmission, semi-automatic air conditioning, boom suspension and full LED package make the T60 ready for intensive work – from farms, through logistics centers, to industrial plants.
| GENERAL SPECIFICATIONS | |
|---|---|
| Maximum lifting capacity | 2250 kg |
| Maximum lifting height | 4.7 m |
| Boom type | Telescopic, 1 segment + tilt/dump joint |
| Operating weight | 5840 kg |
| Maximum speed | 40 km/h |
| Notes | Engine compartment soundproofing; engine and chassis guards |
| Track width | 1430 mm |
| Wheelbase | 2200 mm |
| Dimensions (l × w × h) | 5400 × 1880 × 2490 mm |
| Certification | CE |
| ENGINE | |
| Brand | Kubota |
| Rated power | 54.6 kW / 73 HP @ 2600 rpm |
| Aspiration | Turbocharger |
| Emission standard | Stage V / Tier 4f |
| Exhaust aftertreatment | Diesel Particulate Filter (DPF) |
| Fuel | Diesel |
| Injection | Electronic Common Rail |
| Construction | Four-stroke, 4 cyl., inline |
| Displacement | 3331 cm³ |
| Cooling system | Liquid |
| Air filter | Pre-heating + filter with dust separator |
| DRIVETRAIN | |
| System type | Hydrostatic, variable displacement pump |
| Hydraulic motor | Hydrostatic, CTV continuously variable transmission |
| Gearbox | Two-speed, servo-controlled |
| Direction change | Electrohydraulic (FNR) |
| Precision drive pedal | Hydraulic, for controlled driving |
| HYDRAULIC SYSTEM | |
| Pump | Gear (steering + working system) |
| Pump capacity | 101 l/min |
| Max. pressure | 23 MPa |
| Valve block | 4-section, Load Sensing & Flow Sharing (4 simultaneous movements) |
| Boom outlets | Flat Face quick couplers, continuous flow |
| Control | 4-in-1 joystick with FNR |
| Hydraulic oil | DIECI Hydro Telehandler Fluid ISO46 |
| AXLES AND BRAKES | |
| Axles | 2 rigid, 4 planetary gears |
| Axle steering | 80° articulated chassis, LS power assistance |
| Front axle | Rigid, self-locking |
| Rear axle | Oscillating, 20° travel |
| Service brakes | Oil-immersed disc brakes (front + rear) |
| Parking brake | Vacuum, electronic control |
| CAB | |
| Certification | ROPS / FOPS |
| Equipment | Silent-block suspension, soundproofing, 2 doors, opening roof, pneumatic seat with belt, adjustable steering wheel, FNR joystick, ventilation + heating |
| Control panel | LCD, load indicator and diagnostics, hour meter, DPF level etc. |
| SAFETY DEVICES | |
| Systems | Overload protection, neutral start only, automatic parking brake, fork lock, safety belt, STOP, joystick sensor, reverse signal, side + rear mirrors |
| STANDARD EQUIPMENT | |
| CE package | Anti-tip system + documentation |
| Axles | Automatic differential lock 45% (rear) |
| Hydraulics | Flow Sharing valve block, closed center, pressure reduction |
| Wheels | MICHELIN XMCL 420/75 R20″ + mudguards |
| Attachment plate | Euro Adapter with quick coupler + hydraulic and electrical outlets |
| Additional hydraulic outlet | Electrically controlled (boom head) |
| Boom suspension | Damping + “float” mode |
| Air conditioning | Semi-automatic |
| Seat | Pneumatic |
| Cab comfort | Sun visor |
| Radio | Installation preparation |
| Reverse system | 7″ display with camera |
| Work lighting | LED on boom, 2 × LED front, 4 × LED rear |
| Rear hydraulic outlet | Yes |
| CEE hitch | Automatic, Ø 38 mm, towed mass ≤ 20 t |
| Trailer socket | 7-pin |
Commercial information and ordering
Product available on individual order through FLT Grupa – official distributor of Dieci brand in Poland.
Delivery time: determined individually, depending on machine configuration.
Warranty: 12 months from delivery date, with possibility of extension to 36 months.
Service: warranty and post-warranty service provided by FLT Grupa – authorized Dieci partner in Poland.
Photos: are for illustration purposes and may differ from final machine configuration.
Financing options: loan/leasing.
We offer new and used equipment, ready for rental and purchase.
For detailed quote and available delivery times – contact our advisor (contact)
| Kategoria | Rolnictwo |
|---|---|
| Manufacturer | DIECI |
| Load Capacity | 1,800 kg to 2,500 kg |
| Lifting Height | 3,300 mm to 4,999 mm |
| Condition | New |
| Drive Type | Diesel |
