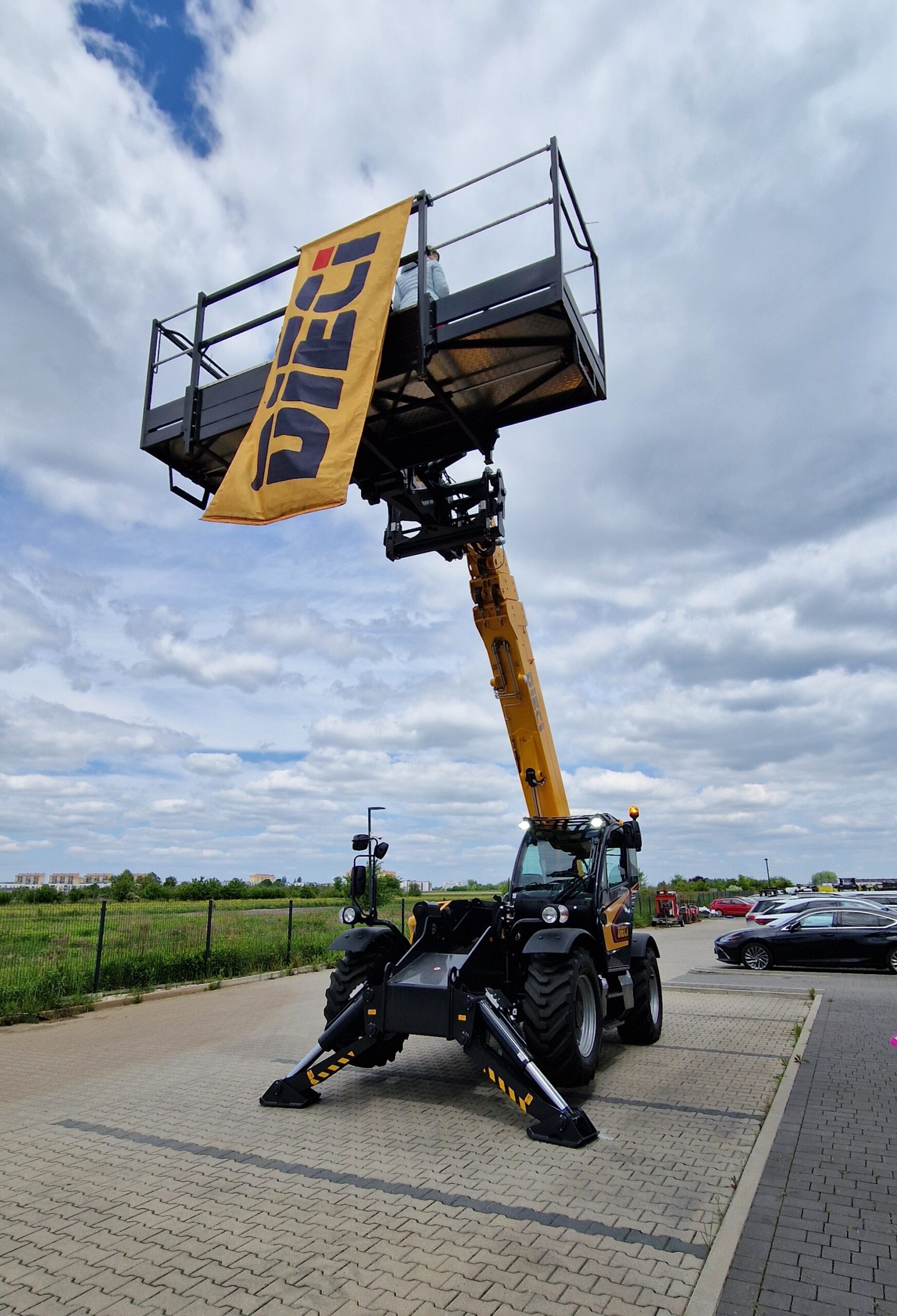

New DIECI ICARUS 45.17 – GD telescopic loader + 800 kg rotating basket
110,888.89€ net
DIECI ICARUS 45.17 – GD + 800 kg rotating basket is a universal, fixed telescopic loader created specifically for the construction industry – ideal wherever versatility, reliability and durability matter. Thanks to the telescopic boom with an impressive reach of 16.4 m and lifting capacity of 4,500 kg, the machine easily transports materials, palletized loads and structural elements, replacing several traditional devices on the construction site.
The Icarus model was designed to be intuitive to operate, maneuverable and economical – ideal for rental fleets. Simple construction, no AdBlue system and minimal service requirements reduce maintenance costs while guaranteeing high machine availability. The hydraulic system with optimized performance ensures smooth, precise operation even in demanding terrain conditions.
The loader is equipped with stable supports, safety systems protecting the operator and reinforced chassis and engine compartment guards. This makes the DIECI ICARUS 45.17 – GD excellent for both logistics tasks on construction sites and daily transport work in companies renting heavy equipment. If you’re looking for a machine that combines high performance, low operating costs and maximum simplicity of operation – Icarus is ready for action.
| GENERAL SPECIFICATIONS | |
|---|---|
| Maximum lifting capacity | 4,500 kg |
| Maximum lifting height | 16.40 m |
| Boom type | Telescopic, 3 segments + extension acceleration |
| Operating weight | 11,430 kg |
| Maximum speed | 25 km/h |
| Notes | Engine compartment soundproofing, guards under engine and chassis, 2 stabilizing supports with proportional control, cross leveling. |
| Dimensions (L × W × H) | 6,260 mm × 2,390 mm × 2,530 mm |
| Marking | CE |
| ENGINE | |
| Brand | Kubota |
| Rated power | 55.4 kW (74 HP) @ 2,600 rpm |
| Peak power | 55.4 kW (74 HP) @ 2,600 rpm |
| Aspiration | Turbocharger with intercooler |
| Emission standard | Stage V / Tier 4f – DOC + DPF |
| Injection | Common Rail (electronic) |
| Number of cylinders / Displacement | 4 inline / 3,331 cm³ |
| Cooling system | Liquid |
| DRIVETRAIN | |
| System type | Hydrostatic, variable displacement pump |
| Transmission | Continuously variable CTV, two-speed |
| Direction change | E-control (also while moving) |
| Precision drive pedal | Electronic pedal |
| HYDRAULIC SYSTEM | |
| Pump | Gear, 102 l/min |
| Maximum pressure | 27 MPa (3,916 psi) |
| Valve / Control | 4-in-1 full electric + joystick FNR |
| AXLES AND WHEEL STEERING | |
| Axle system | 2 axles, 4 planetary reducers |
| Steering modes | 4 wheel / crab / 2 wheel |
| Front axle | Cross leveling (from cab) |
| Rear axle | Oscillating |
| CAB | |
| Homologation | ROPS / FOPS |
| Description | Silentblock, soundproofing, door with electric window, adjustable seat, steering wheel with adjustment, joystick FNR. |
| Instrumentation | TFT 7″, load indicators, diagnostics, tachometer, AdBlue, DPF. |
| SAFETY DEVICES | |
| • Movement lock during overload • Automatic parking brake • “Arm too high” sensor • Joystick with deadman sensor • Side and rear mirrors |
|
| EQUIPMENT INCLUDED IN PRICE (individual configuration possible) | |
| • Axles with 45% differential lock mechanism • 400/70-24 Michelin wheels • Semi-automatic air conditioning • Pneumatic seat • Reversing camera + TFT 7″ • LED work lighting (cab + boom) • DTS telematics (36 months) • Carriage + forks 120 × 50 × 1,200 mm (5 t) • Rotating basket for lifting people 120 x 240 cm hydraulically extendable to 420 cm, lifting capacity 800 kg • Dieci quick coupler with hydraulic socket |
|
| FINAL PRICE | |
| Net | 499,000.00 PLN |
Product available in FLT Group stock
Delivery time: 2-3 weeks from order date
Warranty: 12 months from delivery date, with possibility to extend to 36 months.
Service: warranty and post-warranty service provided by FLT Group – authorized Dieci partner in Poland.
Financing options: loan/leasing.
We offer new and used equipment, ready for rental and purchase.
For detailed offer and available delivery dates – Contact our advisor
| Manufacturer | DIECI |
|---|---|
| Load Capacity | over 3,500 kg |
| Lifting Height | over 6,500 mm |
| Drive Type | Diesel |
| Condition | New |
