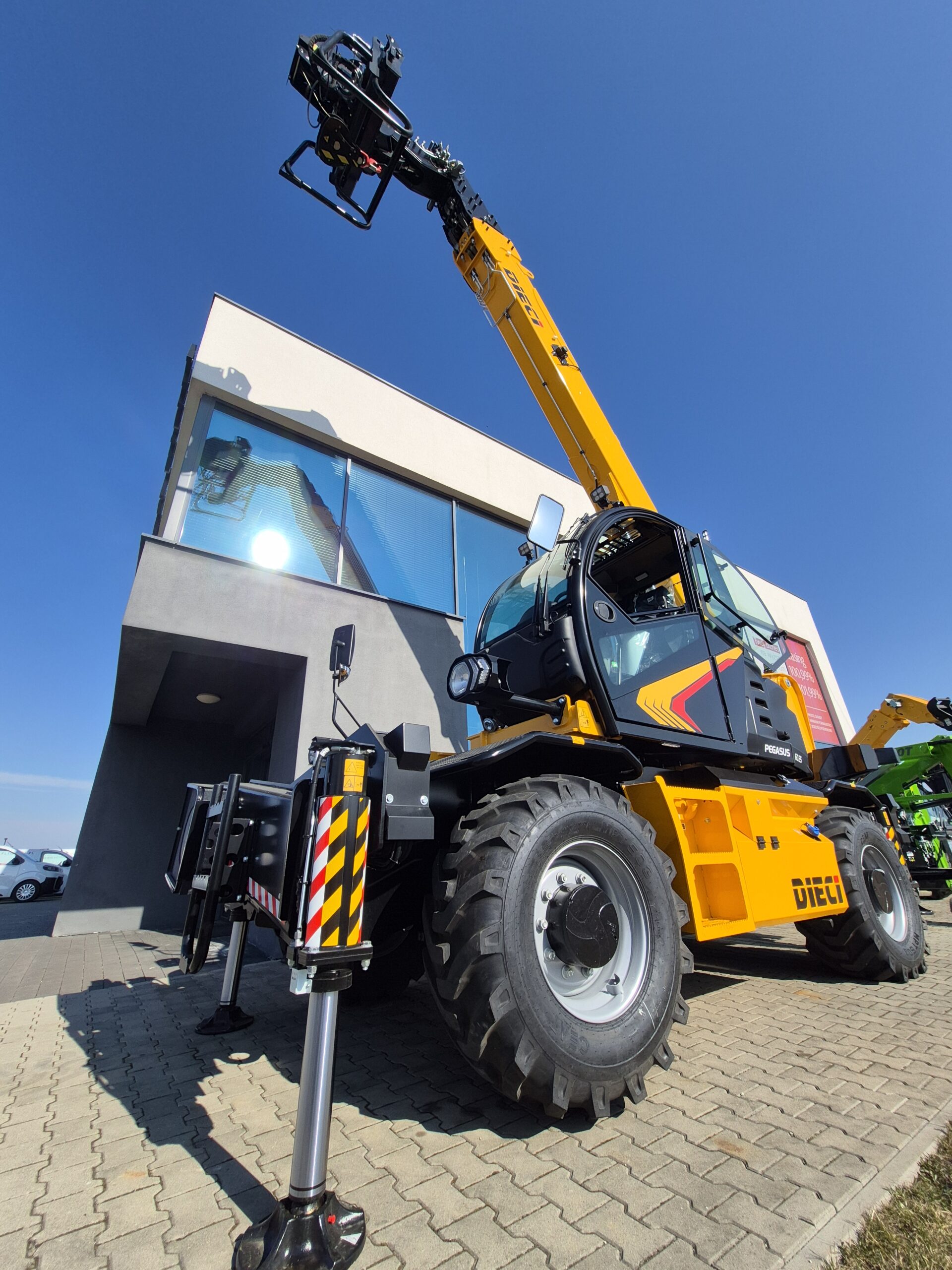

New DIECI PEGASUS CLASSIC 60.25 rotating telescopic loader + hydraulic basket + 5t winch (rental)
333.33€ net
Pegasus Classic 60.25 is a compact, rotating telescopic loader that combines a lifting capacity of 6,000 kg with a maximum working height of 24.10 m. Thanks to continuous 360° superstructure rotation and four hydraulically lowering stabilizing supports with automatic leveling, the machine offers complete freedom of operation even in the most difficult terrain.
The heart of the 60.25 model is the latest Perkins Stage V engine (100 kW), working with a hydrostatic CTV transmission system. This ensures precise maneuvering and speeds up to 40 km/h, while reducing fuel consumption and emissions. The high-performance hydraulic system 190 l/min with Flow Sharing function enables five parallel attachment movements, and the 5-in-1 joystick increases control ergonomics.
The spacious ROPS/FOPS cabin with Grammer seat, dual TFT monitors and wired camera guarantees the operator maximum comfort and full visibility. The rich equipment package – including a 120 × 240 cm work basket (300 kg), PPF 5 t winch and 6.5 t pallet forks – means that one machine replaces a lift, crane and platform, streamlining every construction site.
GENERAL SPECIFICATIONS
| Maximum lifting capacity | 6000 kg |
| Maximum lifting height | 24.10 m |
| Boom type | Telescopic with 3 extending segments, tilt/dump articulation STD 133° |
| Own weight | 17,740 kg |
| Maximum speed | 40 km/h |
| Notes | Engine and chassis protection, 4 independent hydraulic stabilizing supports with lateral leveling, preparation for personnel lifting baskets and lifting equipment, electrical socket on boom head |
| Dimensions (L x W x H) | 8000 mm x 2380 mm x 3030 mm |
| Marking | CE |
| Superstructure rotation | Continuous 360° |
ENGINE
| Brand | Perkins |
| Rated / peak power | 100 kW (134 HP) @ 2200 rpm |
| Aspiration | 16-valve turbocharger with intercooler |
| Emission standard | Stage V |
| Exhaust aftertreatment | DOC + DPF + SCR (with AdBlue) |
| Injection | Electronic Common Rail |
| Construction | Four-stroke |
| Cylinders / arrangement | 4, in-line |
| Displacement | 3621 cm³ |
| Cooling | Liquid |
| Air filter | Air pre-heating and pre-filter with dust separator |
TRANSMISSION SYSTEM
| System type | Hydrostatic, variable displacement pump |
| Hydraulic motor | Hydrostatic with automatic continuously variable CTV transmission |
| Direction change | Electro-hydraulic, activated while machine is moving |
| Precision pedal (inching) | Electronic pedal for controlled driving |
| Gearbox | Two-speed, servo-controlled |
HYDRAULIC SYSTEM
| Pump | Variable displacement with Load Sensing (steering and movement system) + gear pump (auxiliary devices) |
| Flow rate | 190 l/min |
| Working pressure | 30 MPa |
| Oil | DIECI Hydro Telehandler Fluid ISO46 |
| Boom outlets | Quick couplers with continuous oil supply function |
| Distributor | 5-section hydraulic, servo-controlled with electronic control, proportional “Load Sensing” with “Flow Sharing”, 5 simultaneous movements with independent maximum speed adjustment for each movement |
| Control | 5-in-1 joystick (proportional) |
AXLES WITH DIFFERENTIAL MECHANISM
| Axle type | 2 steered with 4 planetary reduction gears |
| Axle steering | 4 wheels / both axles steering in same direction / 2 wheels |
| Front axle | With lateral leveling controlled from cabin |
| Rear axle | Oscillating with automatic lock |
| Service brakes | Oil bath with assistance on rear and front axle, with dual hydraulic installation |
| Parking brake | Vacuum with electronic control |
CABIN
| Homologation | ROPS – FOPS |
| Description | Silentblock suspension, soundproofing, wipers with washers (front, rear and roof), opening rear window, door with opening window, adjustable Grammer seat with mechanical suspension, 5-in-1 joystick, steering wheel with position adjustment, USB socket |
| Instrumentation | Dual color TFT monitor 3.5″ + TFT 7″ with load indicator and function diagnostics, tachometer, water thermometer, fuel level indicator, water and engine oil temperature warning light, speedometer, hour meter, clock, AdBlue level indicator, automatic equipment recognition system |
SAFETY DEVICES
| Protective devices | Load control system with movement lock in case of overload, start only with parking brake engaged, driving only with driver on board, automatic parking brake when engine is off, fork lock, safety belt, emergency stop, rear-view mirrors, stabilizing support lock with boom raised, working area limitation function |
STANDARD EQUIPMENT
| Wheels | Complete set 18 × 22.5″ CEAT |
| Attachment carrier plate | Standard |
| Air conditioning | Semi-automatic |
| Road lights | LED for public road driving (front – daytime) |
| Axles | Automatic differential lock 45% on second axle |
| Stabilizing supports | Set of additional stabilizing support pads |
| Hydraulic outlets | Hydraulic outlet with electrical control on boom head for accessories performing 2 movements + additional hydraulic outlet with electrical control on boom head |
| Boom suspension | Cushioned |
| Seat | Grammer with mechanical suspension and control elements with dual joystick, with FNR integrated in right joystick and electrical preparation for mounting attachment performing 3 movements |
| Sun visor | Standard + LED step lighting |
| Wheel centering | Automatic with correct steering signal indicator |
| Radio | Radio preparation kit with antenna and speakers |
| Camera | Wired rear camera with 7″ monitor |
| LED spotlights | LED spotlight on boom head, pair of adjustable LED front spotlights on cabin, pair of adjustable LED rear spotlights on cabin |
| Remote control | Remote control with 2 joysticks for controlling load movement and personnel lifting baskets (for use when basket is present with boom up/down and when mounting attachment performing 3 movements) |
| Buzzer | Reverse driving buzzer with white noise |
| 180° kit | Kit for driving with superstructure rotated 180° |
| Telematics | 24-month subscription telematics kit (DTS) + telematics kit (DTS) |
| Pallet forks | Carriage with pallet forks for use with quick coupler complete with forks 130×60 L=1200 mm, lifting capacity 6.5 t |
| Work basket | Rotating personnel lifting basket 120 × 240 cm hydraulically extending to 420 cm, lifting capacity 300 kg (3 people), for machines with remote control |
| Winch | PPF winch lifting capacity 5.0 t with lowering |
Loader available in FLT Group stock
Rental price from 1500 PLN net!
We offer new and used equipment, ready for rental and purchase.
For a detailed offer and available delivery dates – contact our advisor (contact)
| Category | Agriculture |
|---|---|
| Manufacturer | DIECI |
| Load Capacity | over 3,500 kg |
| Lifting Height | over 6,500 mm |
| Condition | New |
| Drive Type | Diesel |
| Offer Type | Rental |
