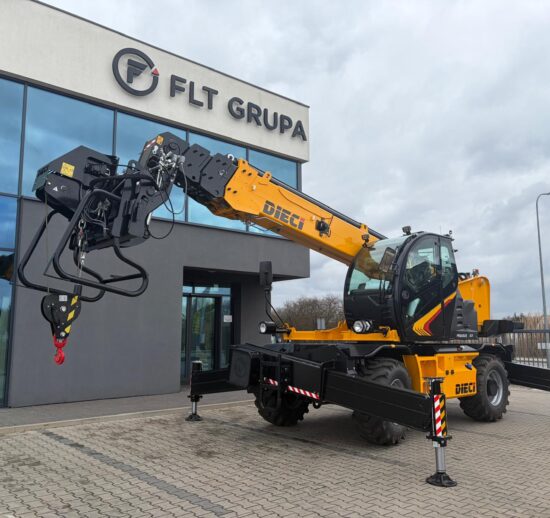

New DIECI PEGASUS-R ESSENTIAL 40.18 400° telescopic loader
156,644.44€ net
Pegasus telescopic loaders are a new range of rotating machines that provide an incredibly wide working range in any working conditions. Thanks to the 360° or 400° body rotation,
the operator has over 2000 m2 of working area at their disposal, without the need to constantly reposition the machine.
The Pegasus construction was created with transporting loads in difficult conditions in mind. Four independent stabilizing supports with automatic leveling function allow safe work even on uneven and soft ground. A wide range of attachments – from forks, through work platforms, to crane hooks – means that one machine replaces several different devices used on construction sites.
Essential Series – simple, intuitive, reliable
The Essential line includes Pegasus models with discontinuous 400° rotation and was designed specifically for the rental industry and users looking for an easy-to-operate, durable and economical telescopic loader. Advanced Dieci technological solutions simplify daily operation, increase safety and work efficiency, while the comfortable cabin ensures operator ergonomics. High lifting capacity, impressive reach and increased productivity are just some of the advantages of the Pegasus series. The machine combines the functions of a telescopic loader, aerial work platform
and crane, providing complete versatility with minimal investment and service costs.
| GENERAL SPECIFICATIONS | |
|---|---|
| Maximum lifting capacity | 4000 kg (8818 lb) |
| Maximum lifting height | 18 m (59.1 ft) |
| Boom type | Telescopic with 3 extending segments and articulation for loading/dumping STD 133°. |
| Body rotation | Limited 400° |
| Notes | Protection under engine and under chassis. 4 independent stabilizing support feet with hydraulic lowering system. Preparation for mounting personnel lifting baskets and lifting equipment. Electrical socket on boom head. |
| Own weight | 14 700 kg (32 408 lb) |
| Maximum speed (for wheels with maximum permissible diameter) | 18 km/h (18.6 mph) |
| Notes | Protection under engine and under chassis. 4 independent stabilizing supports with hydraulic lowering system. Transverse leveling. Preparation for mounting personnel lifting baskets and lifting equipment. Electrical socket on boom head. |
| Dimensions (length × width × height) | 6630 mm (261.0 in) × 2380 mm (93.7 in) × 3030 mm (119.3 in) |
| Marking | CE marking |
| ENGINE | |
| Brand | Kubota |
| Rated power | 54.6 kW (73 HP) |
| RPM | 2600 rpm |
| Peak power | 55.4 kW (74 HP) |
| RPM | 2600 rpm |
| Aspiration | Turbocharger intercooler |
| Emission standard | Stage V/Tier 4f |
| Exhaust treatment | DOC+DPF |
| Injection | Electronic Common Rail injection |
| Number and arrangement of cylinders | 4, inline arrangement |
| Displacement | 3331 cm³ (203 in³) |
| Cooling system | Liquid |
| Air filter | Air preheating and pre-air filter with dust separator |
| DRIVETRAIN | |
| Type of drivetrain | Hydrostatic, with variable displacement pump |
| Hydraulic motor | Hydrostatic, with automatic continuously variable transmission CTV |
| Precision drive pedal | Electronic pedal for controlled driving |
| Gearbox | Two-speed, servo-controlled |
| HYDRAULIC SYSTEM | |
| Type of hydraulic pump | Variable displacement pump for power steering and drive system |
| Hydraulic pump capacity | 130 l/min (34.3 gal/min) |
| Maximum working pressure | 30 MPa (4351 psi) |
| Type of hydraulic oil | DIECI Hydro Telehandler Fluid ISO46 |
| Hydraulic sockets on boom | Boom hydraulic sockets. Continuous oil supply function in hydraulic sockets |
| Type of distributor | Hydraulic 5-section, servo-controlled with electronic control, proportional “Load Sensing” with “Flow Sharing”, 5 simultaneous movements with independent regulation of maximum speed of each movement |
| Distributor control | 5-in-1 proportional joystick |
| AXLES WITH DIFFERENTIAL MECHANISM | |
| Type of axle | 2 steered with 4 planetary reduction gears |
| Type of steering | 4 wheels / steering both axles in same direction / 2 wheels |
| Front axle | Rigid |
| Rear axle | Oscillating |
| CABIN | |
| Cabin homologation | ROPS – FOPS |
| Cabin description | Silentblock suspension, soundproofing, front and rear wipers with washers, roof wiper with washer, opening rear window, door with opening window, radio preparation, adjustable seat, steering wheel with position adjustment. 5-in-1 joystick. |
| Cabin instrumentation | 3.5″ TFT color display with load indicator and function diagnostics, tachometer, water thermometer, fuel level indicator, water and engine oil temperature warning light, speedometer, hour meter, clock, automatic equipment recognition system. |
| SAFETY DEVICES | |
| Protective devices | Load control system with movement lock in case of overload, start only with parking brake engaged, driving only with driver on board, automatic parking brake when engine off, fork lock, safety belt, emergency stop, rear mirrors, stabilizing support lock with raised boom, working area limitation function. |
| STANDARD EQUIPMENT | |
| Complete set of wheels 405/70-20 18 PR MPT602 TL CEAT with mudguards | |
| Standard attachment carrier plate | |
| Hybrid LED lights for public road driving (front) | |
| Axles for machines with automatic differential lock 45% on second axle | |
| Quick coupler for accessories with hydraulic control from cabin including hydraulic socket (specific carriage mandatory for forks) | |
| Set of additional stabilizing support pads | |
| Hydraulic socket with electrical control on boom head for accessories performing 2 movements | |
| Additional hydraulic socket with electrical control on boom head, important in presence of quick coupler or hydraulic socket | |
| Drain hose winding drum on boom head | |
| Heated Grammer seat with pneumatic suspension and control elements with double joystick, with FNR integrated in right joystick and electrical preparation for mounting attachment performing 3 movements | |
| Automatic wheel centering with correct steering signal indicator | |
| Radio with USB and Bluetooth hands-free kit (including mounting preparation) | |
| Sun visor and LED step lighting | |
| WIRELESS digital camera on boom head on 7″ monitor | |
| WIRELESS digital rear camera (mandatory WIRELESS camera on boom head on 7″ monitor) | |
| WIRELESS digital side camera (mandatory WIRELESS camera on boom head on 7″ monitor) | |
| LED spotlight on boom head | |
| Pair of adjustable LED front spotlights on cabin | |
| Pair of adjustable LED rear spotlights on cabin | |
| Remote control with 2 joysticks for controlling load movement and personnel lifting baskets (for use in presence of basket with boom up/down and when mounting attachment performing 3 movements) | |
| Reverse drive buzzer with white noise | |
| 24-month subscription telematics kit (DTS) | |
| Telematics kit (DTS) | |
| Carriage with pallet forks for use with quick coupler complete with forks 120×45 L = 1200 mm. Lifting capacity 4.2 t | |
| Rotating personnel lifting basket 120 × 240 cm hydraulically extendable to 420 cm. Lifting capacity 800 kg (3 people), for machines with remote control | |
Sales information and ordering
Product available on individual order through FLT Grupa – official distributor of Dieci brand in Poland.
Delivery time: individually determined, depending on machine configuration.
Warranty: 12 months from delivery date, with possibility of extension to 36 months.
Service: warranty and post-warranty service provided by FLT Grupa – authorized Dieci partner in Poland.
Photos: are illustrative and may differ from final machine configuration.
Financing possibility: loan/leasing.
We offer new and used equipment, ready for rental and purchase.
For detailed offer and available delivery times – contact our advisor (contact)
