New telescopic loader DIECI ICARUS 60.18 – GD (delivery 03.2026) (rental)
200.00€ net

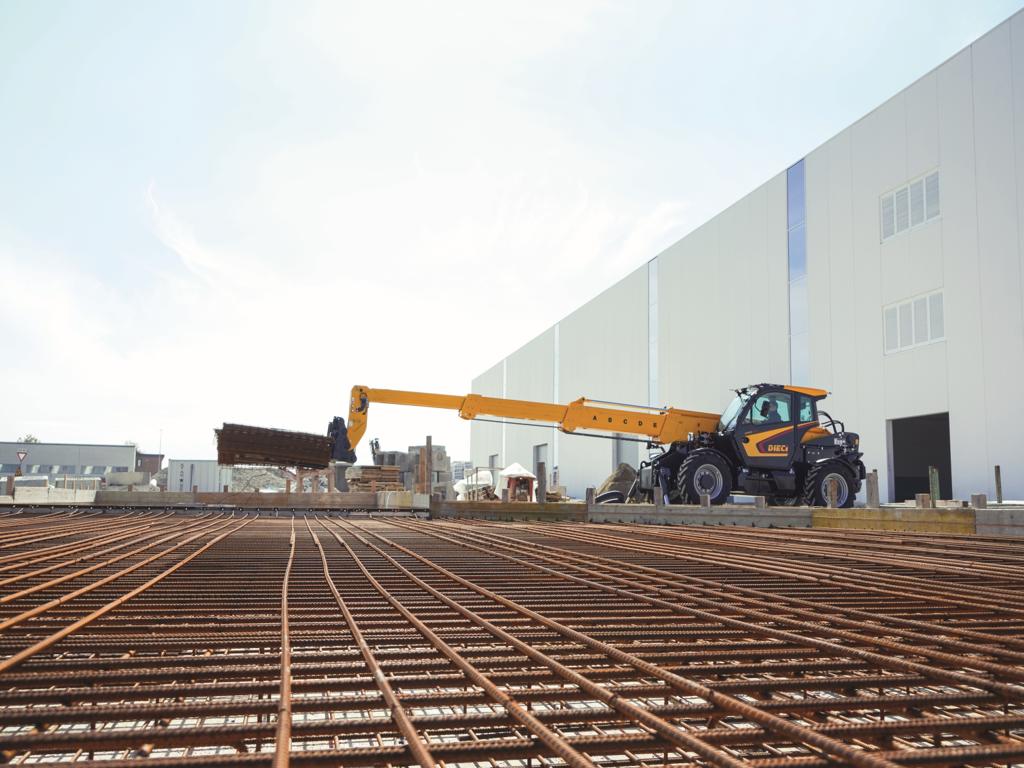

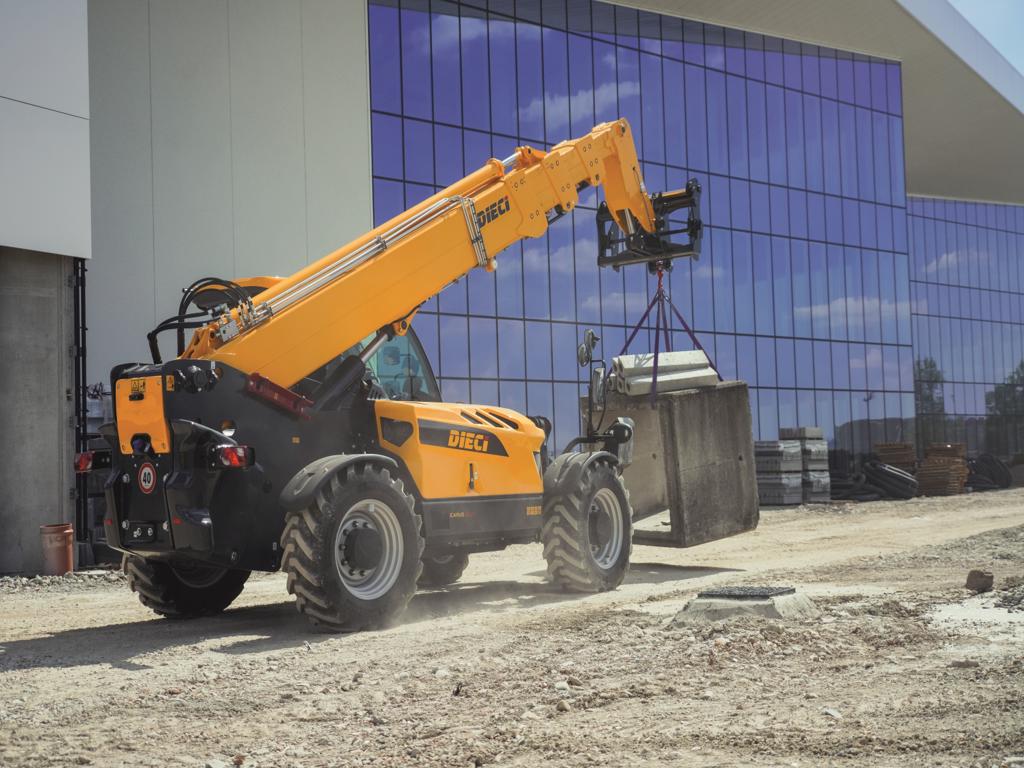

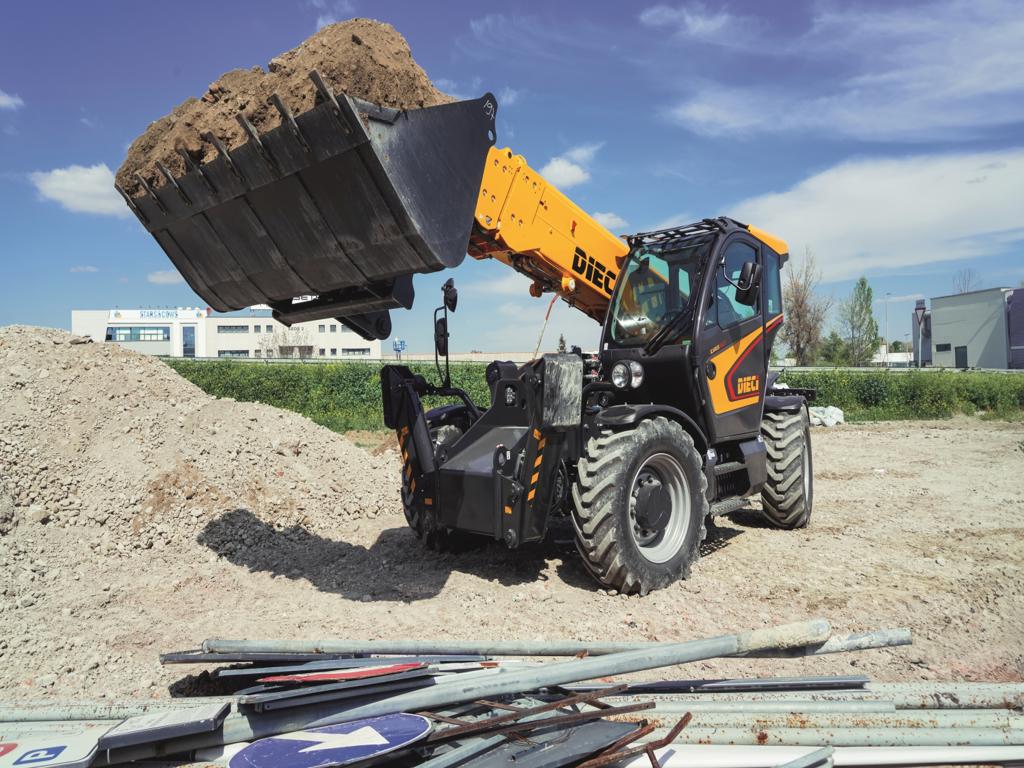

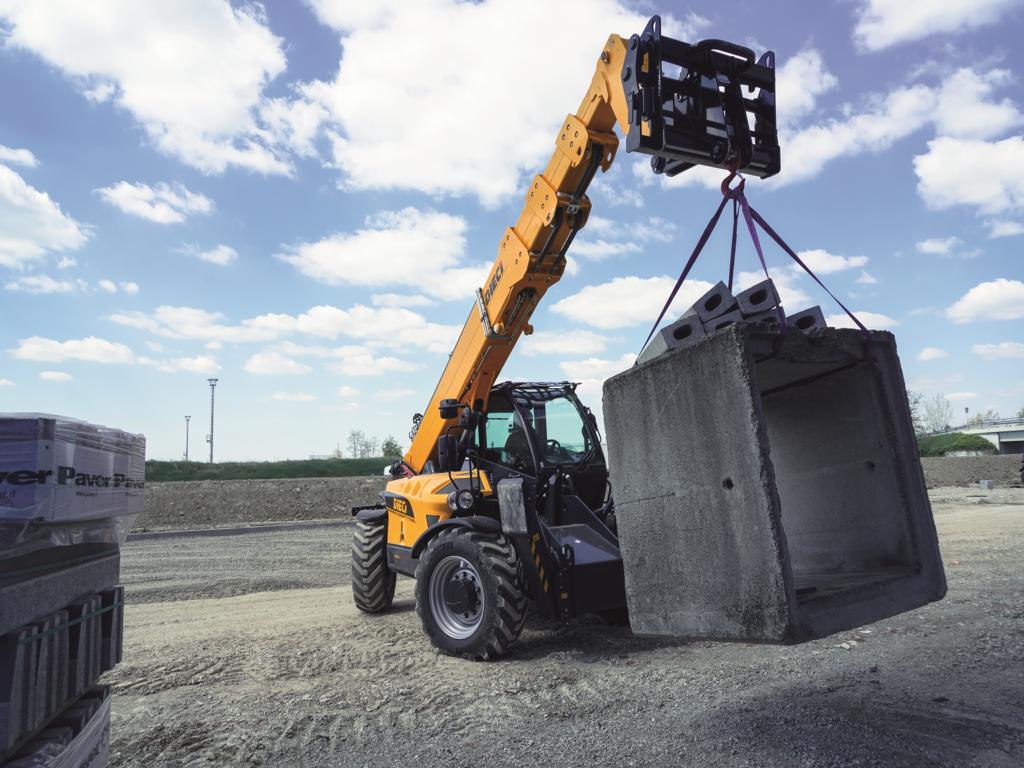

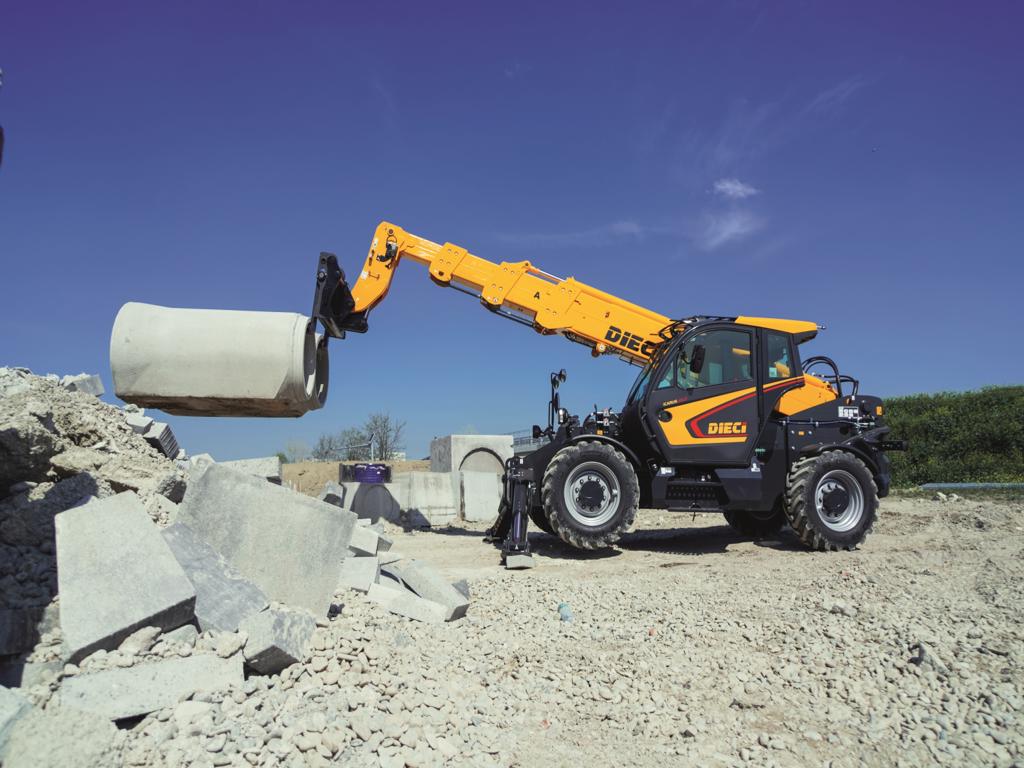

DIECI Icarus 60.18 – GD is a durable construction-class telescopic loader designed for intensive rental and construction sites requiring high lifting capacity and reach. The lifting capacity of 6,000 kg and reach of 17.8 m allow free handling of pallets, work platforms, or prefabricated elements at significant heights. Three extending boom sections and proportional stabilizing supports with cross-leveling guarantee safety and precision even at maximum reach.
The power unit consists of a 55.4 kW (74 HP) Kubota Stage V engine without AdBlue, working with an economical hydrostatic ECO drive (CVT) and two-speed gearbox. High hydraulic performance of 102 l/min @ 27 MPa with a 4-in-1 Full Electric distributor and FNR joystick facilitates attachment operation – from forks (6.5 t carriage included) to personnel basket.
The spacious ROPS/FOPS cabin with semi-automatic air conditioning, pneumatic seat, 7″ TFT screen and reversing camera ensures all-day work comfort. LED lighting, reversible fan and attachment recognition system enhance safety and reduce operating costs. Icarus 60.18 – GD – power, reach and ease of operation in one.
| General Data | |
|---|---|
| Max. lifting capacity | 6,000 kg |
| Max. lifting height | 17.80 m |
| Boom type | Telescopic (3 extending segments) |
| Own weight | 14,600 kg |
| Max. speed | 25 km/h |
| Dimensions (L × W × H) | 6,900 × 2,440 × 2,670 mm |
| Ground clearance | 460 mm |
| Turning radius | 3,970 mm |
| Supports / leveling | 2 proportional stabilizers, cross-leveling |
| Breakout force | 5,700 daN |
| Tractive force | 7,700 daN |
| Kubota Engine | |
| Rated power | 54.6 kW / 73 HP @ 2,600 rpm |
| Maximum power | 55.4 kW / 74 HP @ 2,600 rpm |
| Displacement | 3,331 cm³ (4 cyl., inline configuration) |
| Supercharging | Turbocharger with intercooler |
| Emission standard | Stage V / Tier 4f (DOC + DPF, without AdBlue) |
| Injection system | Electronic Common Rail |
| Construction | Four-stroke |
| Cooling system | Liquid |
| Air filter | Air preheating and pre-air filter with dust separator |
| Drive System | |
| Power transmission | Hydrostatic, with variable displacement pump, CVT |
| Gearbox | Two-speed, servo-controlled |
| Direction change | With electronic control activated while machine is moving |
| Precision pedal | Electronic (Inching) |
| Steering modes | 4-wheel, crab, 2-wheel |
| Hydraulics | |
| Pump | Gear, 102 l/min, 27 MPa |
| Distributor | 4-in-1 Full Electric + FNR joystick |
| Hydraulic oil type | DIECI Hydro Telehandler Fluid ISO46 |
| Couplings | Flat Face (continuous oil flow) + standard 48″ (1220 mm) mounting plate |
| Valve | Double overcenter on suspension |
| Chassis and Axles | |
| Axles | 2 steered, with 4 planetary reduction gears |
| Front axle | With cross-leveling controlled from cabin |
| Rear axle | Oscillating |
| Differential mechanism | Limited slip 45% |
| ROPS/FOPS Cabin | |
| Equipment | Semi-automatic air conditioning, pneumatic seat, 7″ TFT, reversing camera, USB ×2, sun visor, silentblock, opening roof and rear window, interior rearview mirror, door with electrically opening window, joystick with integrated FNR |
| Instrumentation | 7″ color TFT display, load and diagnostics indicator, tachometer, water thermometer, fuel level indicator, water temperature warning light, hydraulic oil and engine oil temperature, speedometer, hour meter, clock, particulate filter clogging level indicator |
| Safety | |
| Systems | Overload protection, driving only with operator on board, automatic parking brake when engine off, fork lock, safety belt, emergency stop button, side and rear mirrors, “Arm too high” function, joystick with capacitive operator presence sensor |
| Standard Equipment | |
| 440/80-24 ASCENSO TL 22PR MIB407 tires, standard right and left rearview mirrors, halogen road driving lights (front and rear), solenoid valve on boom head for accessories performing 2 movements, radio preparation kit, floor mat set under seat and rear cover, comfort cabin kit (sun visor, rear safety net, dual USB socket), correct steering signal indicator, LED spotlight on boom head, pair of adjustable front LED work lights on cabin, pair of adjustable rear LED work lights on cabin, reversible fan, attachment recognition system, 24-month subscription telematics kit (DTS), pallet forks 130×60 mm L=1200 mm (6.5 t lifting capacity). | |
Commercial Information and Ordering
The loader will be available in FLT Group stock – planned delivery 03.2026
Delivery date may change
Rental price from 900 PLN net!
We offer new and used equipment, ready for rental and purchase.
For detailed offer and available delivery dates – contact our advisor (contact)
| Category | Agriculture |
|---|---|
| Manufacturer | DIECI |
| Load Capacity | over 3,500 kg |
| Lifting Height | over 6,500 mm |
| Condition | New |
| Drive Type | Electric |
| Offer Type | Rental |
